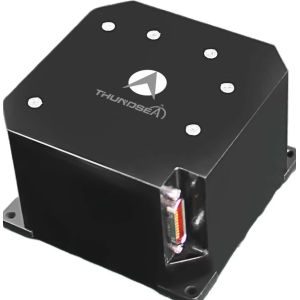

Control Grade TDFG70T Fiber Optic Gyroscope
1 Introduction
The fiber optic gyroscope (FOG) is an angular velocity sensor that leverages the Sagnac optical effect, employing an advanced all-digital closed-loop architecture to achieve real-time angular velocity measurements at >4 kHz sampling rates via serial communication.This product line comprises single-axis, dual-axis, and triaxial configurations. Dual-axis and triaxial FOGs utilize shared light sources and signal-processing circuits to simultaneously measure angular velocity across multiple orthogonal axes, ensuring synchronized multi-axis motion tracking for high-dynamic applications.
2 Application
It is suitable for stabilization and control equipment for guided weapons, attitude control, torpedoes, tactical missiles, and medium and high-end industrial equipment.
3 Characteristics
Low noise, low power consumption, low cost;
Instant-on, digital output for easy connection to a computer.
All-solid-state design with no moving parts;
Small size, light weight and flexible design;
High reliability and long life.
4 Main parameters
|
Performance |
Dynamic Range |
≥±400°/s |
|
Bias in-run |
＜1°/h |
|
|
Accuracy(10sec) |
0.5°/h~0.2°/h |
|
|
ARW(Angular random walk |
＜0.02°/√hr,1σ |
|
|
Vibration screening |
20~2000Hz,6.06g |
|
|
Bandwidth |
＞200Hz |
|
|
Electrical Interface |
Turn on time |
10s |
|
Output signal format |
RS-422 |
|
|
Built in self-test |
-- |
|
|
Output signal update rate |
500Hz~2000Hz |
|
|
Output signal baud rate |
230400bps~921600bps |
|
|
Operating temperature |
- 40℃ ~ + 70℃ |
|
|
Storage temperature |
- 55℃ ~ + 85℃ |
|
|
Physical Specifications |
Power supply |
5V |
|
Connector |
J30J-9ZKP |
|
|
Power consumption |
≤5W |
|
|
MTBF (per MIL-HDBK-217-F) |
＞100000hr |
|
|
Weight |
≤500g |
|
|
Dimensions |
70mm×70mm×53mm |
